Medi Node Products

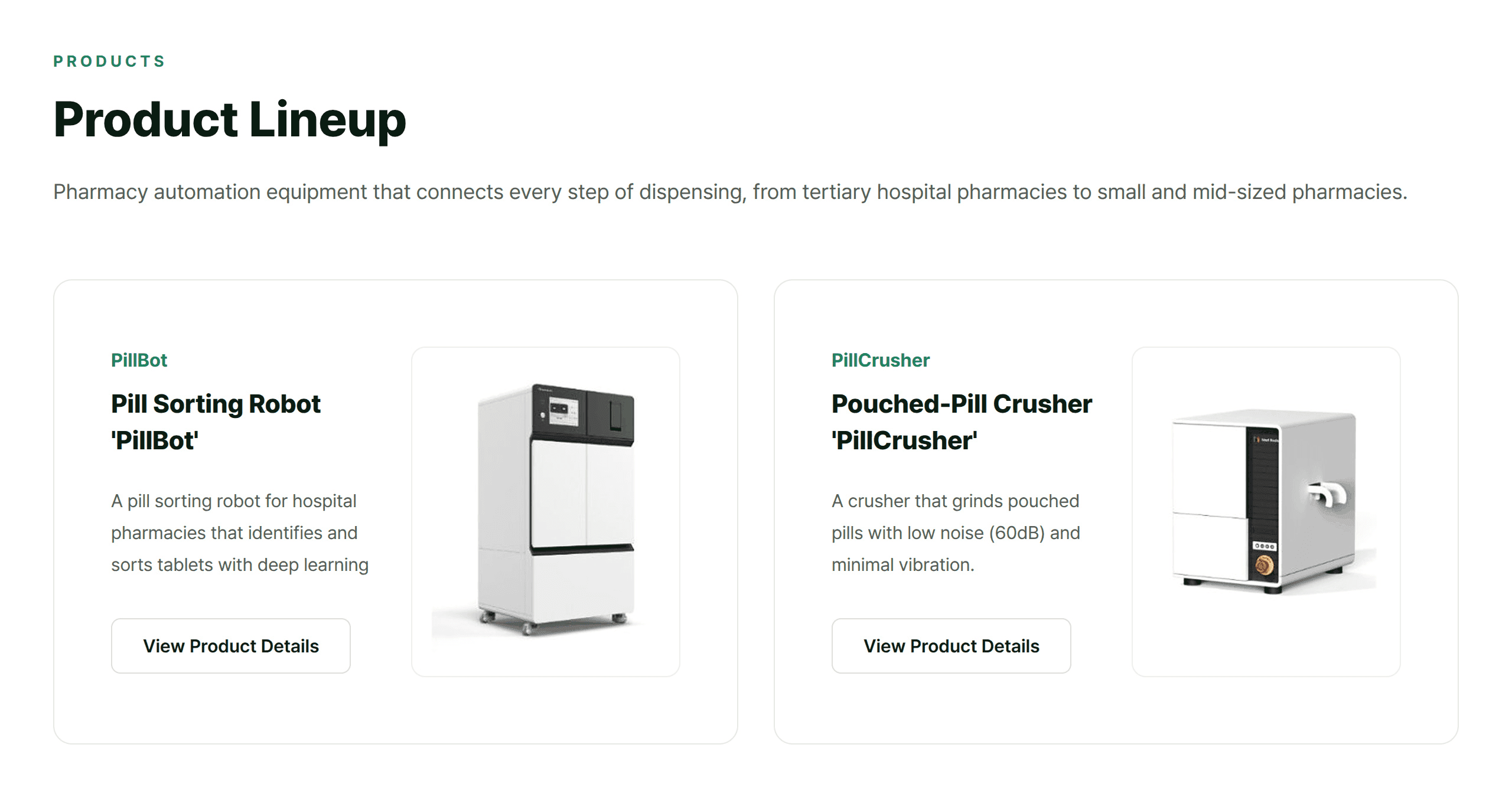

Product Lineup
Pharmacy automation equipment that connects every step of dispensing, from tertiary hospital pharmacies to small and mid-sized pharmacies.
PillBot - Pill Sorting Robot 'PillBot': A pill sorting robot for hospital pharmacies that identifies and sorts tablets with deep learning
PillCrusher - Pouched-Pill Crusher 'PillCrusher': A crusher that grinds pouched pills with low noise (60dB) and minimal vibration.

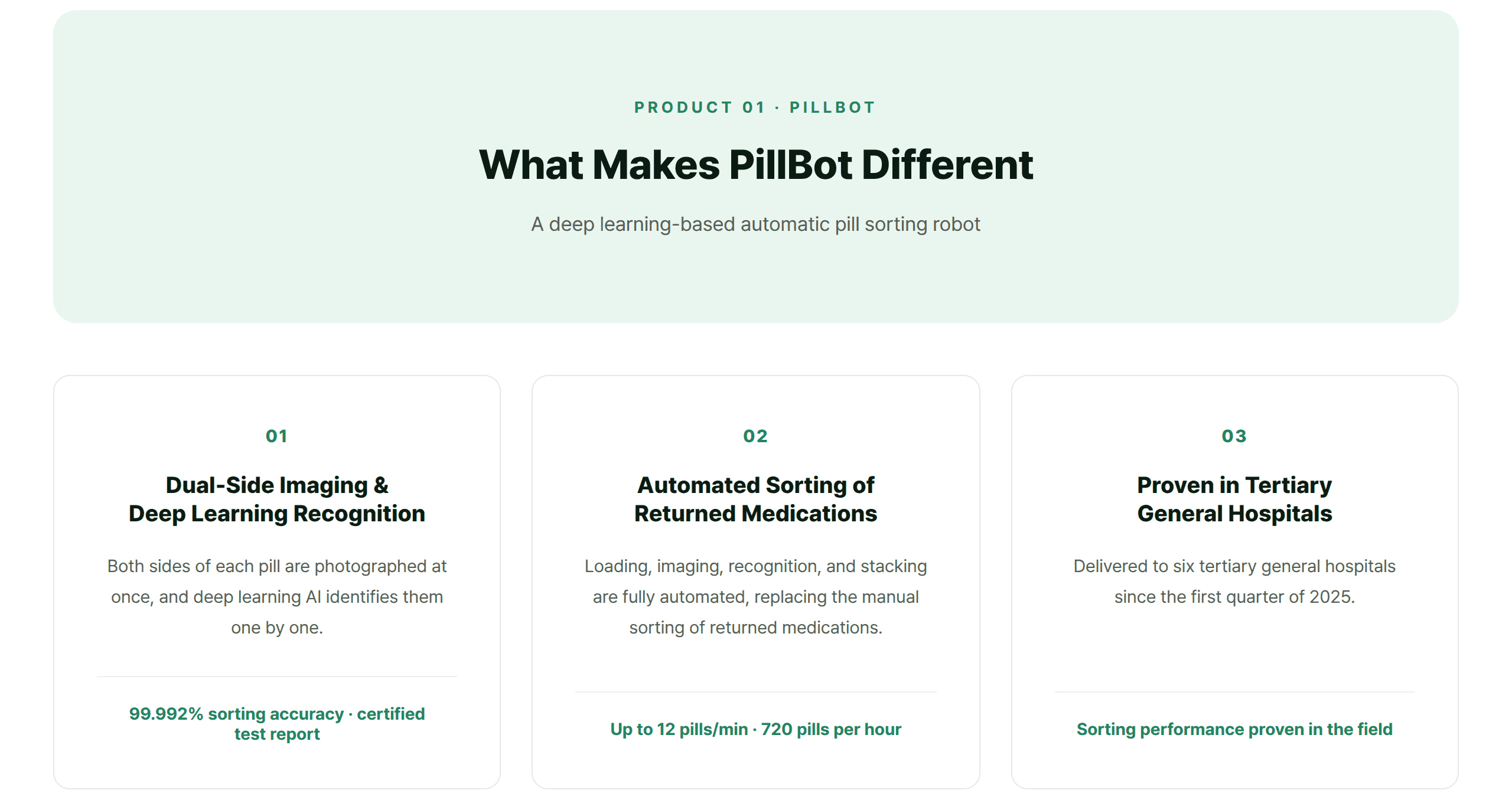

What Makes PillBot Different
PRODUCT 01 · PILLBOT - A deep learning-based automatic pill sorting robot
01 Dual-Side Imaging & Deep Learning Recognition - Both sides of each pill are photographed at once, and deep learning AI identifies them one by one. 99.992% sorting accuracy · certified test report
02 Automated Sorting of Returned Medications - Loading, imaging, recognition, and stacking are fully automated, replacing the manual sorting of returned medications. Up to 12 pills/min · 720 pills per hour
03 Proven in Tertiary General Hospitals - Delivered to six tertiary general hospitals since the first quarter of 2025. Sorting performance proven in the field

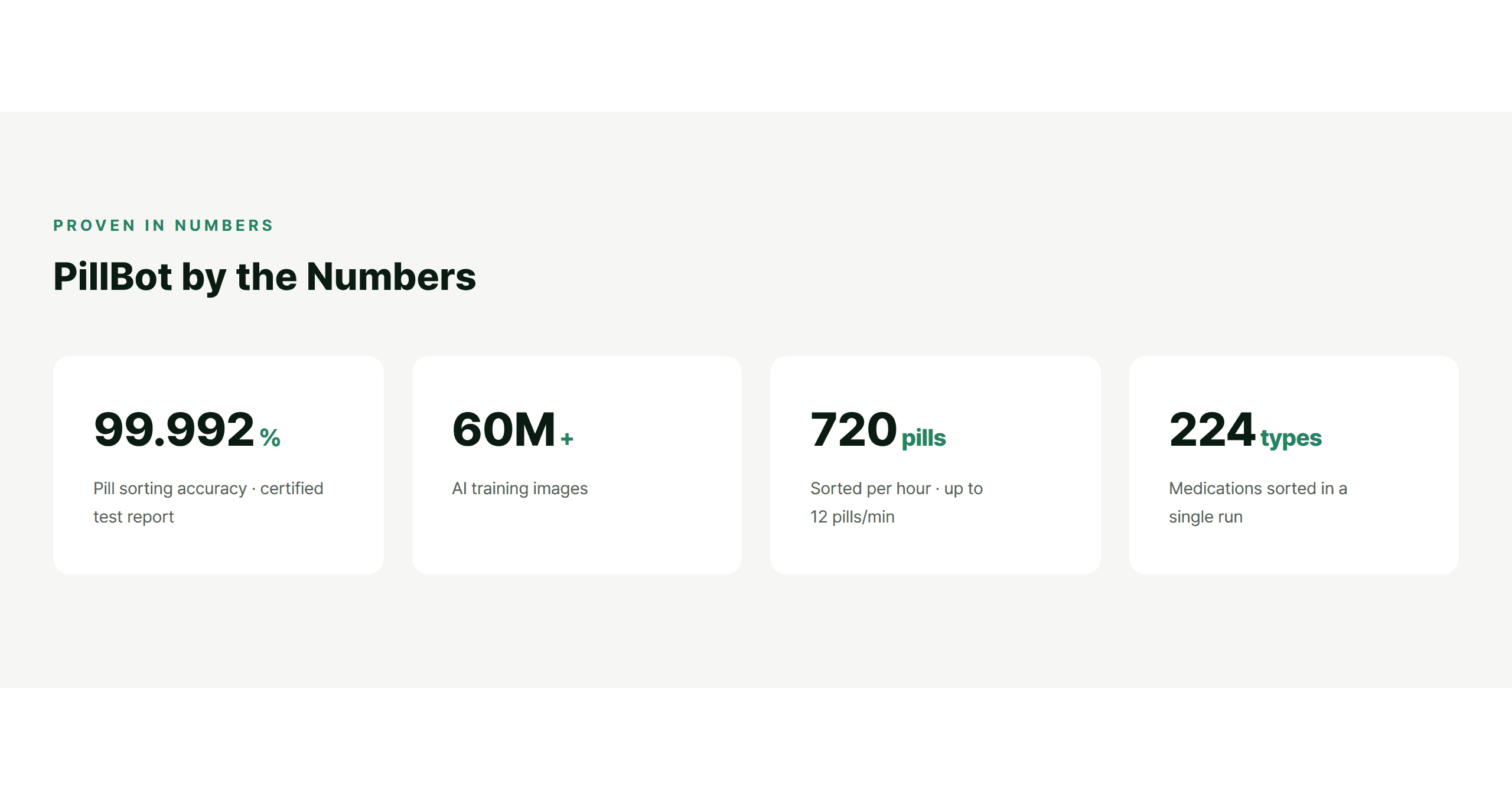

PillBot by the Numbers
99.992% - Pill sorting accuracy · certified test report
60M+ - AI training images
720 pills - Sorted per hour · up to 12 pills/min
224 types - Medications sorted in a single run

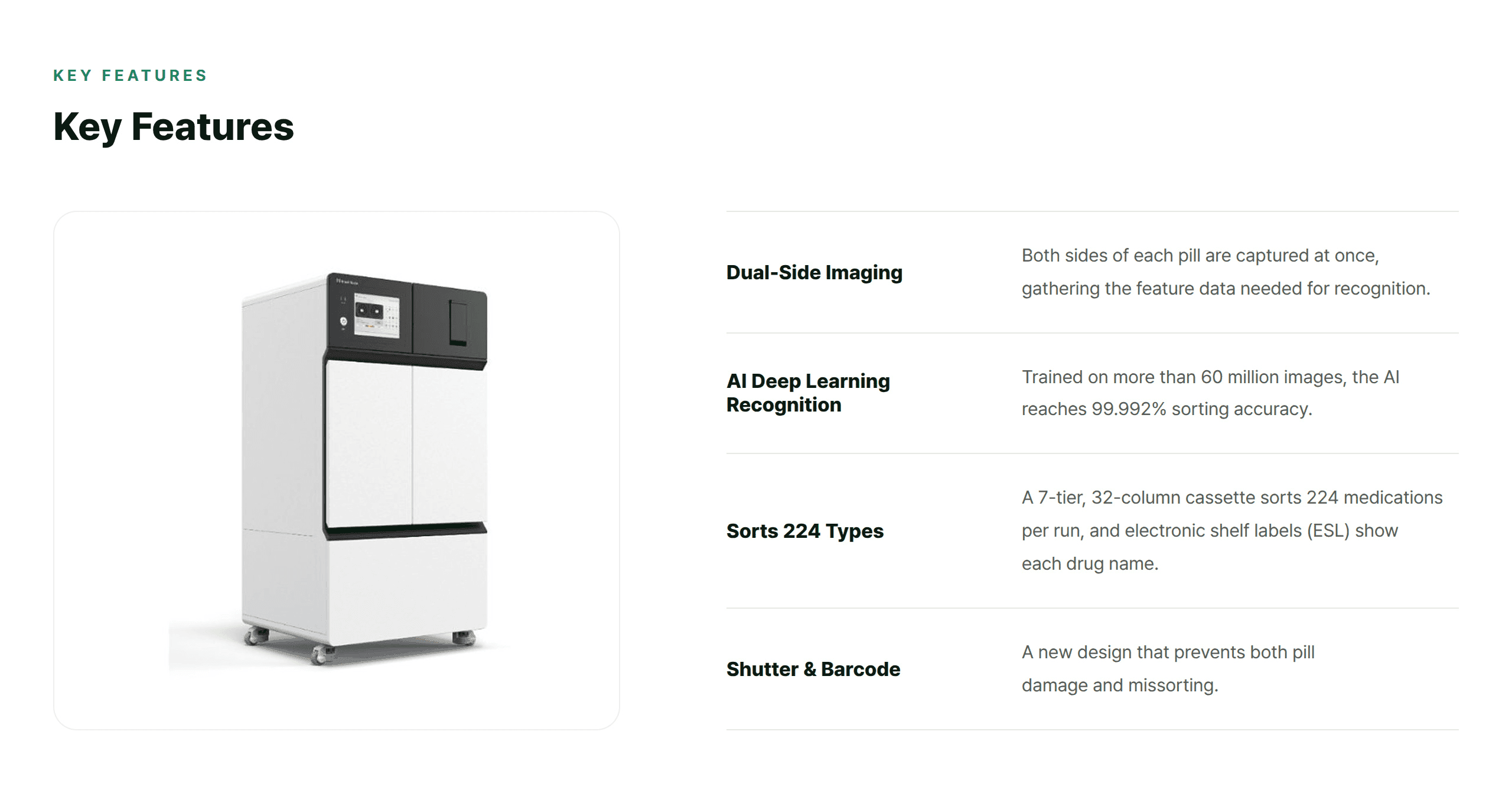

PillBot Key Features
Dual-Side Imaging - Both sides of each pill are captured at once, gathering the feature data needed for recognition.
AI Deep Learning Recognition - Trained on more than 60 million images, the AI reaches 99.992% sorting accuracy.
Sorts 224 Types - A 7-tier, 32-column cassette sorts 224 medications per run, and electronic shelf labels (ESL) show each drug name.
Shutter & Barcode - A new design that prevents both pill damage and missorting.

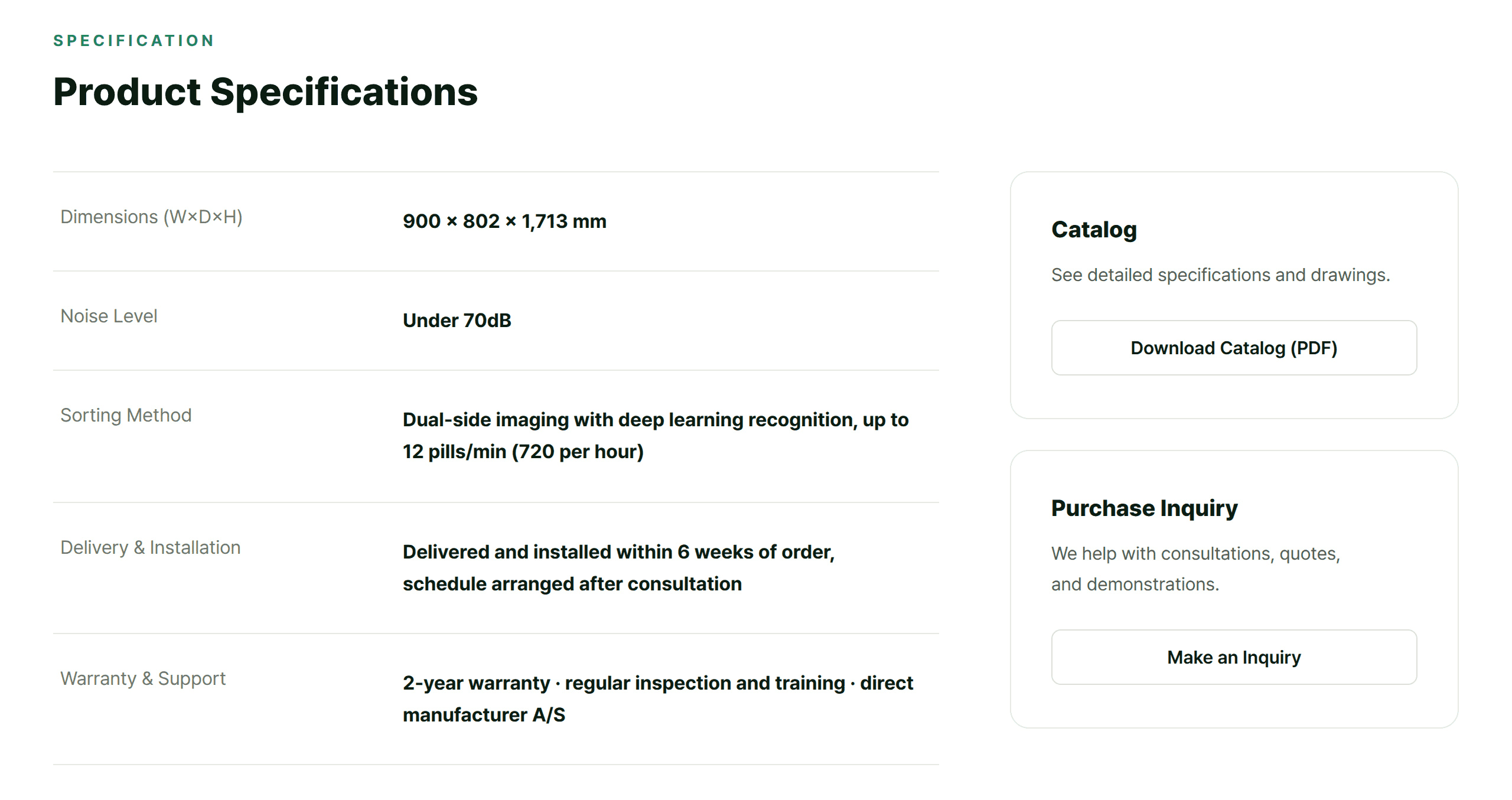

PillBot Product Specifications
Dimensions (W×D×H) 900 × 802 × 1,713 mm
Noise Level Under 70dB
Sorting Method Dual-side imaging with deep learning recognition, up to 12 pills/min (720 per hour)
Delivery & Installation Delivered and installed within 6 weeks of order, schedule arranged after consultation
Warranty & Support 2-year warranty · regular inspection and training · direct manufacturer A/S
Catalog - See detailed specifications and drawings. (Coming soon)
Purchase Inquiry - We help with consultations, quotes, and demonstrations.

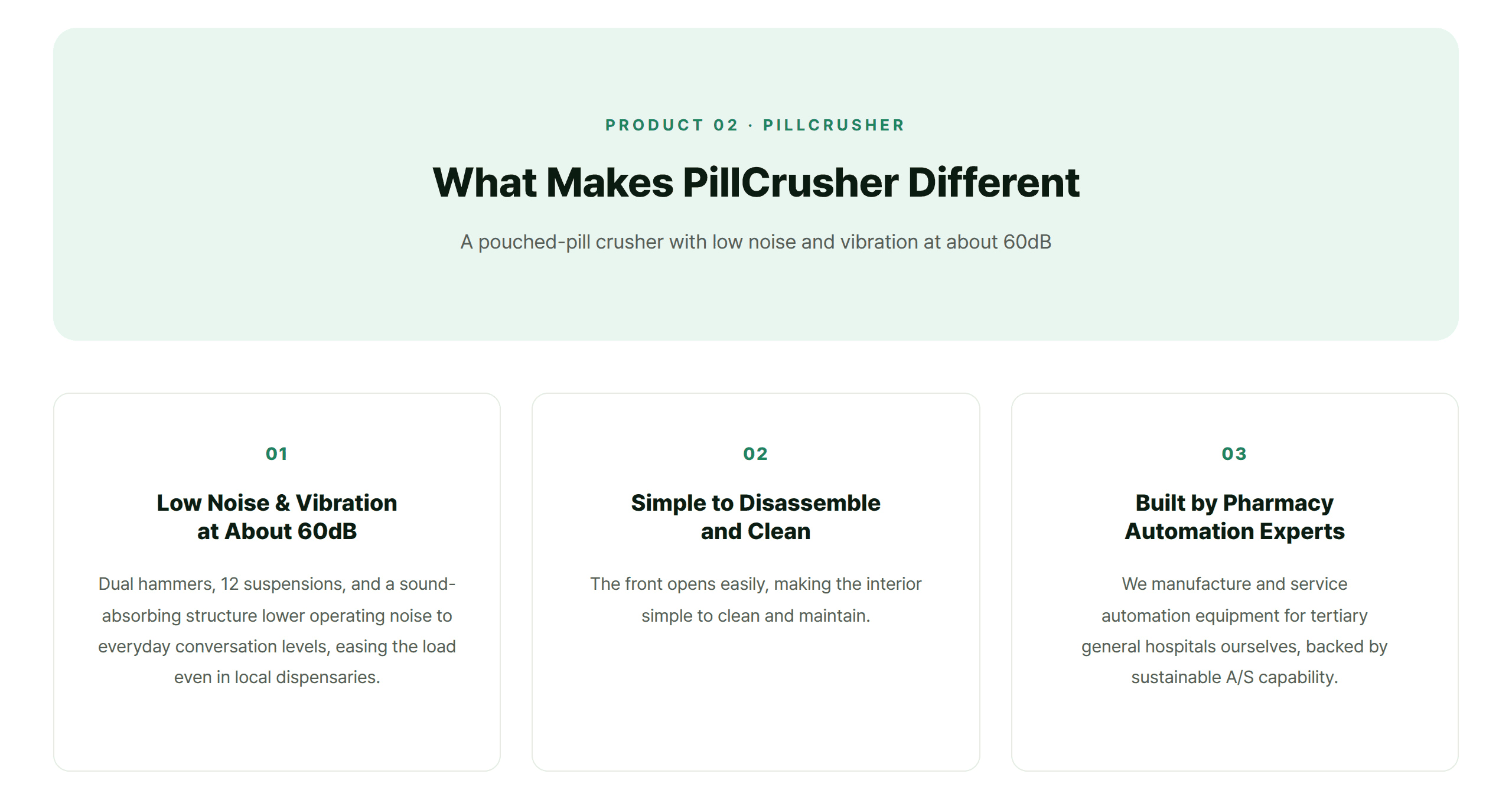

What Makes PillCrusher Different
PRODUCT 02 · PILLCRUSHER - A pouched-pill crusher with low noise and vibration at about 60dB
01 Low Noise & Vibration at About 60dB - Dual hammers, 12 suspensions, and a sound-absorbing structure lower operating noise to everyday conversation levels, easing the load even in local dispensaries.
02 Simple to Disassemble and Clean - The front opens easily, making the interior simple to clean and maintain.
03 Built by Pharmacy Automation Experts - We manufacture and service automation equipment for tertiary general hospitals ourselves, backed by sustainable A/S capability.

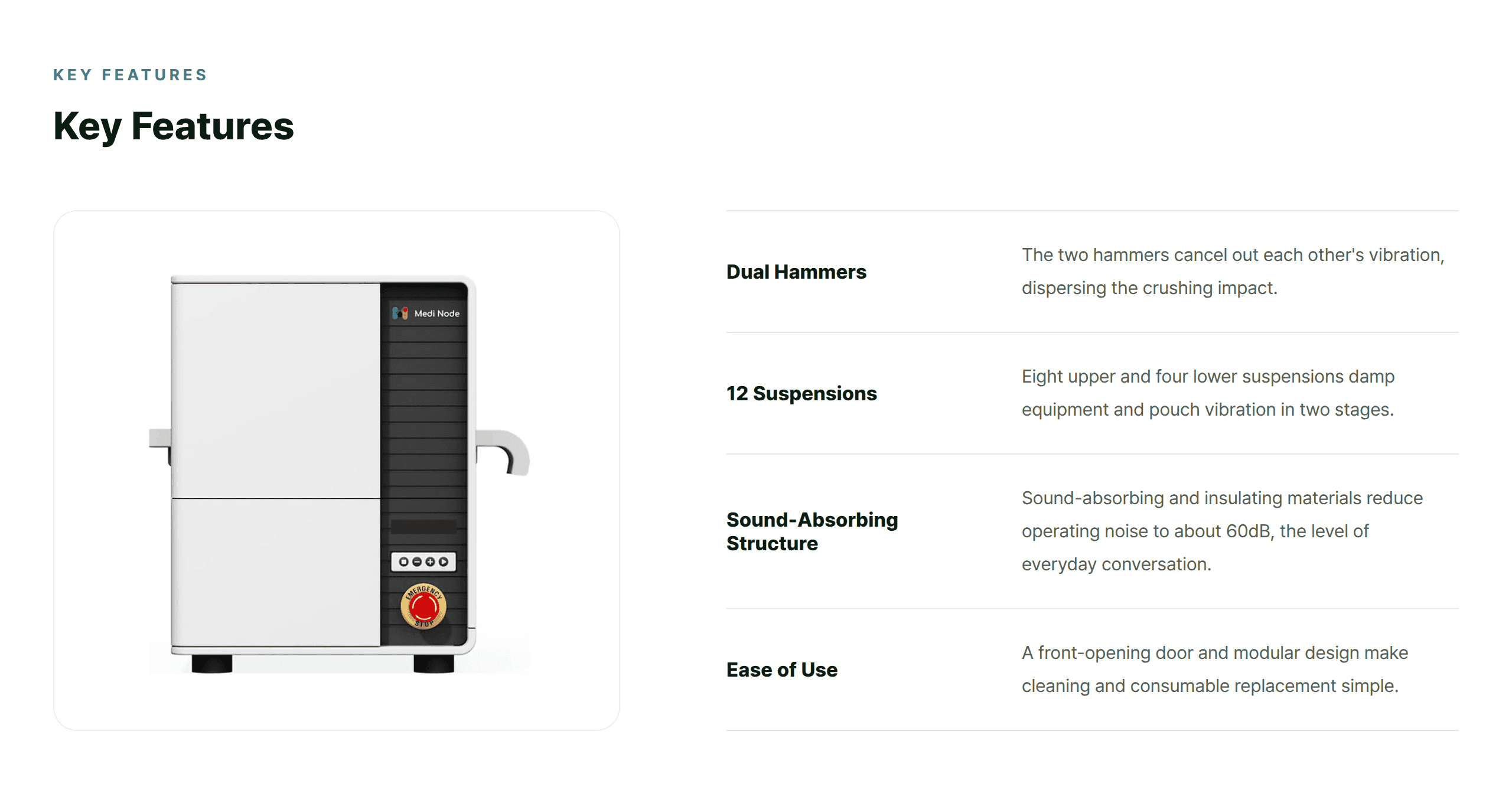

PillCrusher Key Features
Dual Hammers - The two hammers cancel out each other's vibration, dispersing the crushing impact.
12 Suspensions - Eight upper and four lower suspensions damp equipment and pouch vibration in two stages.
Sound-Absorbing Structure - Sound-absorbing and insulating materials reduce operating noise to about 60dB, the level of everyday conversation.
Ease of Use - A front-opening door and modular design make cleaning and consumable replacement simple.

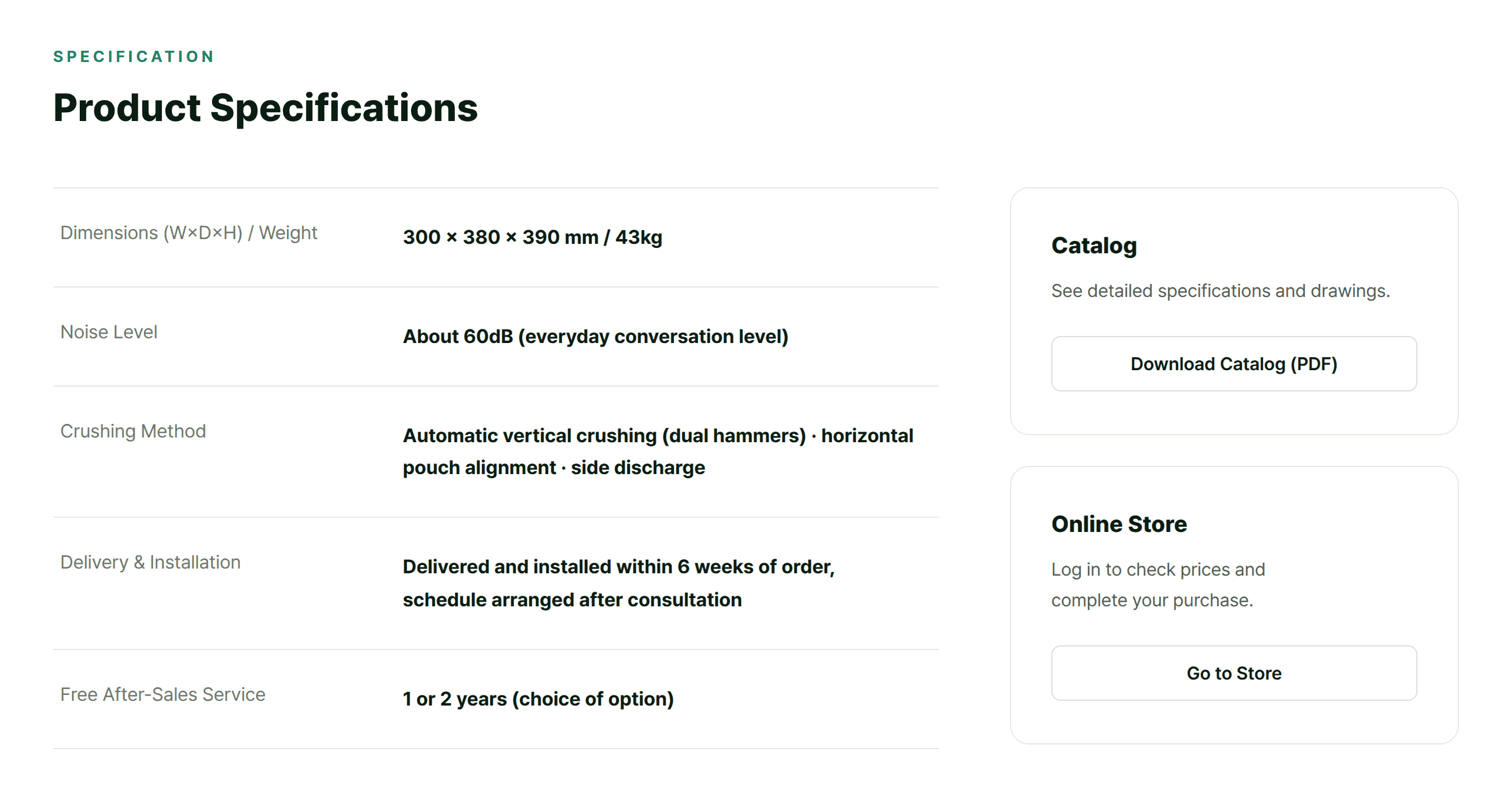

PillCrusher Product Specifications
Dimensions (W×D×H) / Weight 300 × 380 × 390 mm / 43kg
Noise Level About 60dB (everyday conversation level)
Crushing Method Automatic vertical crushing (dual hammers) · horizontal pouch alignment · side discharge
Delivery & Installation Delivered and installed within 6 weeks of order, schedule arranged after consultation
Free After-Sales Service 1 or 2 years (choice of option)
Catalog - See detailed specifications and drawings. (Coming soon)
Online Store - Log in to check prices and complete your purchase.
